Magnetic Rod

Product Details

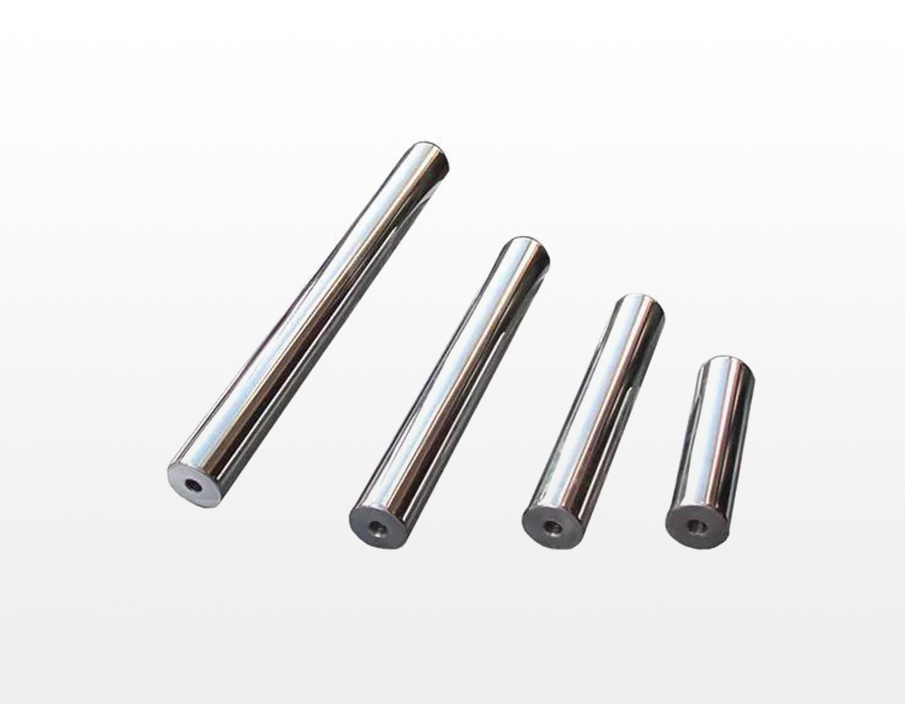

Magnetic Rod

Seprion magnetic rods are renowned for their exceptional magnetic strength and precise dimensions. These rods are crafted with magnets encased in seamless drawn and heat-treated SS 304 L tubes, ensuring durability and reliability. The tube magnets are designed to maximize efficiency, resulting in optimal performance. The bar magnets used are either hard ferrite ceramic magnets or high-intensity rare earth magnets. Additionally, the magnetic grills can be customized to meet specific customer requirements and sizes. These robust magnetic rods are the core components of Magnetic grills and Magnetic Filters, effectively handling high flow rates and efficiently capturing ferrous materials.

Inquiry

Our Magnetic Rods are available in various diameters, including options other than 25mm.

We offer the option to tap M8 x 15mm deep at one end or both ends of the rod, based on your requirements. In addition to stainless steel 304, we can also supply Magnetic Rods in SS 316. For easy cleaning, we have Easy Clean Rods available.

If you need long heavy-duty rods for chain type coolant systems, we have them in stock.We offer customized rod designs to meet your specific needs.

Our Low-intensity Magnetic Rods have a Gauss value of 2,500, while our High-intensity Magnetic Rods have a Gauss value of 11,000. For maximum operating temperature up to 80ᵒC, we have Super High-intensity Magnetic Rods with a Gauss value of 12,000.

We also have rods with intermediate Gauss values for more specific applications. If you require Medium and High-intensity Magnetic Rods with a maximum operating temperature of 200ᵒC, we have them available. For even higher temperatures, our High-intensity Rods with a Gauss value of 9,000 and a maximum operating temperature of 350ᵒC are available with SMCO (Samarium Cobalt Magnet).

  • Plastic
  • Food Products. (Wheat, Sugar, Coffee, Tea, Grains, Pulses, Flour, Spices, Milk, etc.)
  • Pharmaceutical
  • Chemical
  • Ceramic
  • Colors / Paints
  • Pigments
  • Ink
  • Refractory

Medium-intensity magnetic rods are suitable for the separation of granule-size contamination ranging from 1mm to 4mm.

MEDIUM-INTENSITY MAGNETIC RODS (6,000 ± 500 Gauss)
Model No. Magnets Length (mm) Diameter (mm) Material
MMR 10 NdFeb 100 25 S.S.304 / S.S.316
MMR 15 NdFeb 150 25 S.S.304 / S.S.316
MMR 20 NdFeb 200 25 S.S.304 / S.S.316
MMR 25 NdFeb 250 25 S.S.304 / S.S.316
MMR 30 NdFeb 300 25 S.S.304 / S.S.316
MMR 35 NdFeb 350 25 S.S.304 / S.S.316
MMR 40 NdFeb 400 25 S.S.304 / S.S.316
MMR 45 NdFeb 450 25 S.S.304 / S.S.316
MMR 50 NdFeb 500 25 S.S.304 / S.S.316
MMR 55 NdFeb 550 25 S.S.304 / S.S.316
MMR 60 NdFeb 600 25 S.S.304 / S.S.316

High-intensity magnetic rods are capable of catching contamination particles as small as 1 micron. These rods are designed to attract super-fine particles from the carrier material.

HIGH-INTENSITY MAGNETIC RODS (11,000 ± 500 Gauss)
Model No. Magnets Length (mm) Diameter (mm) Material
HMR 10 NdFeB 100 25 S.S.304 / S.S.316
HMR 15 NdFeB 150 25 S.S.304 / S.S.316
HMR 20 NdFeB 200 25 S.S.304 / S.S.316
HMR 25 NdFeB 250 25 S.S.304 / S.S.316
HMR 30 NdFeB 300 25 S.S.304 / S.S.316
HMR 35 NdFeB 350 25 S.S.304 / S.S.316
HMR 40 NdFeB 400 25 S.S.304 / S.S.316
HMR 45 NdFeB 450 25 S.S.304 / S.S.316
HMR 50 NdFeB 500 25 S.S.304 / S.S.316
HMR 55 NdFeB 550 25 S.S.304 / S.S.316
HMR 60 NdFeB 600 25 S.S.304 / S.S.316

Super high-intensity magnetic rods are capable of attracting fine micron-size iron contamination from the carrier material.

SUPER HIGH INTENSITY MAGNETIC RODS (12,000 ± 500 Gauss)
Model No. Magnets Length (mm) Diameter (mm) Material
SHMR 10 NdFeB 100 25 S.S.304 / S.S.316
SHMR 15 NdFeB 150 25 S.S.304 / S.S.316
SHMR 20 NdFeB 200 25 S.S.304 / S.S.316
SHMR 25 NdFeB 250 25 S.S.304 / S.S.316
SHMR 30 NdFeB 300 25 S.S.304 / S.S.316
SHMR 35 NdFeB 350 25 S.S.304 / S.S.316
SHMR 40 NdFeB 400 25 S.S.304 / S.S.316
SHMR 45 NdFeB 450 25 S.S.304 / S.S.316
SHMR 50 NdFeB 500 25 S.S.304 / S.S.316
SHMR 55 NdFeB 550 25 S.S.304 / S.S.316
SHMR 60 NdFeB 600 25 S.S.304 / S.S.316
